About SPI


Mar 13, 2006


SPI (Serial Peripheral Interface) is one of the on-board inter-IC communication interfaces. It was introduced by Motorola, Inc. (Freescale Semiconductor). Because of its simplicity and generality, it is being incorporated in various peripheral ICs and ranks with the Philips IIC-bus. The number of signals of SPI, three or four wires, is larger than IIC's two wires, but the transfer rate can rise up to 20 Mbps or higher depends on device's ability (5 - 50 times faster than IIC). Therefore, it is used mainly for applications, ADC, DAC or communication IC, that requires high data transfer rate as possible.

SPI Structure

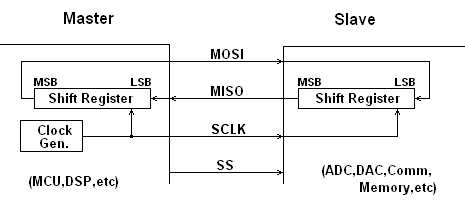

The basic structure of the SPI is shown in right image. The master IC and the slave IC are tied with three signal lines, SCLK (Serial Clock), MISO (Master-In Slave-Out) and MOSI (Master-Out Slave-In), and contents of both 8-bit shift registers are exchanged with the shift clock driven by master IC. Additionally an SS (Slave Select) signal other than above three is used to synchronize start of packet or byte boundary, and for realize multi-slave configuration simultaneously. Most slave ICs assign different pin names, such as DI, DO and CS, to the SPI interface. For one-way transfer deivce, such as DAC and single channel ADC, either of data lines may be ommited. The data bits are shifted in MSB first.

When attach some slave ICs to an SPI, the slave ICs are attached parallel and CS signals from master IC are tied to each slave ICs. The data output of slave IC that selected by CS signal is enabled and deselected devices are disconnected from MISO line.

SPI Transfer Timing

SPI ModeTiming Diagram

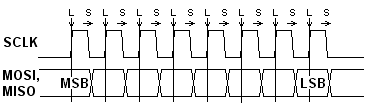

Mode 0
Positive Pulse.
Latch, then Shift.

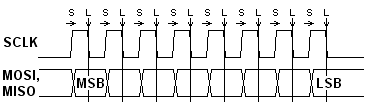

Mode 1
Positive Pulse.
Shift, then Latch.

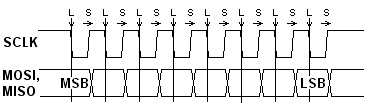

Mode 2
Negative Pulse.
Latch, then Shift.

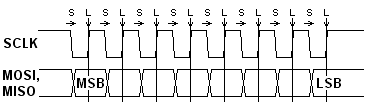

Mode 3
Negative Pulse.
Shift, then Latch.

In SPI, data shift and data latch are done opposite clock edges respectively. There is an advantage that when shift and latch operations are separated, critical timing between two operations can be avoided. Therfore timing consideration for IC design and board design can be relieved. But on the other hand there are four operation modes due to combination of clock polarity and clock phase, master IC must configure its SPI interface as an SPI mode that slave IC required.
